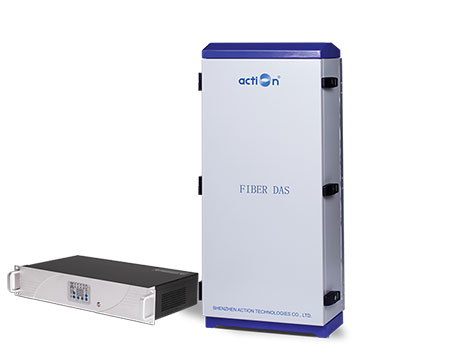

Multi-Band Active DAS is designed to solve the problems of weak mobile signal in the place that is far away from the Base Transceiver Station(BTS) and has fiber optic cable network underground. It is often used with optical fiber repeater.

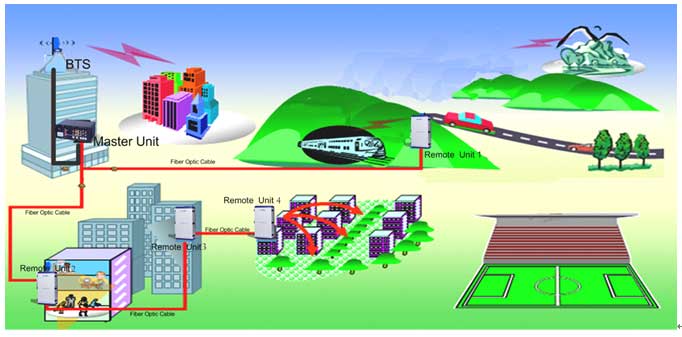

DAS means distributed antenna system, this system consists of two parts: Master Unit and Remote Unit. Below is the application diagram:
Technical Specification:
| Items | Master Unit | Remote Unit |
|---|---|---|
| 3G<E Penta-band | ||
| Frequency Range | Uplink | 703~748MHz / 885~915MHz / 1710~1770MHz / 1920~1975MHz / 2500~2570MHz |
| Downlink | 758~803MHz / 930~960MHz / 1805~1865MHz / 2110~2165MHz / 2620~2690MHz | |
| Transmission Distance | ≤20km | |
| Maximum Input Power (Non-Destructive) | 10dBm | |
| Maximum Output Power | 43±2dB for each band | |
| System Gain(MU+RU) | 45±3dB | |
| Gain Adjustment Range | 0~31dB@Step of 1dB | |
| VSWR | ≤1.5 | |
| Noise Figure@1RU Connection | ≤5dB | |
| In-brand Ripple | ±3dB | |
| Third-order Inter-modulation | 3GPP TS 25.143(R10),3GPP TS 36 143(R10) | |
| Spurious Emission | 3GPP TS 25.143(R10),3GPP TS 36 143(R10) | |
| System Delay | ≤5us | |
| I/O Impedance | 50Ω | |
| RF Connector | 5xN-Female | 1xDIN-Female |
| Optical Connector | 4xFC/APC | 1xLC/UPC |
| Fiber Type/Number | Single mode | |
| Optical Output Power | 0±3dBm@1310nm/≥±3dBm@1550nm | |
| Optical Receiver Sensitivity | ≥-15dBm | |
| Temperature Range | Operation:-25℃~+55℃ / Storage:-30℃~+60℃ | |
| Relative Humidity Range | ≤95%(non condensing) | |
| Power Supply(Customized) | AC220V, 50/60Hz | |
| Dimensions | 482.6x222.25x290 mm | 980x420x230 mm |
| Weight | ≤20kg | ≤50kg |
| Aplication | Indoor(IP30) | Indoor or Outdoor(IP65) |
| Local Control | 1.USB+PC; 2.WiFi hotspot | |
| Remote Control | Wireless Modem | |
| NMS Monitoring | Real-time alarm for door status, temperature, power supply, VSWR, etc; Remote control such as turn on/off, increasing/decreasing output power etc; Real-time status for output/input power, UL/DL gain, all status of Active DAS etc. | |
