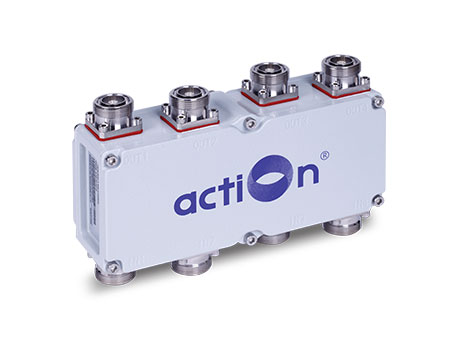

The Matrix 4x4 Combiner is a same band combiner, whose frequency can be customized for all operators. Designed with 4 inputs and 4 outputs, the Matrix 4x4 can efficiently integrate multiple close bands and transmit the overall band respectively through multiple ports. For unused ports they can be terminated with low PIM dummy loads. The whole case is under IP66 waterproof, which can be applied to both indoor and outdoor. It would be your good choice for IBS/BTS system.
Technical Specifications:
| ITEMS | SPECIFICATIONS | |
|---|---|---|
| Frequency Range | Uplink | 385~390MHz |
| Downlink | 695~400MHz | |
| Bandwidth(SAW Filter for UL&DL) | 5MHz | |
| Gain | 90±3dB | |
| Maximum Output Power | Uplink | 30±2dB |
| Downlink | 43±2dB | |
| In-band Flatness | ≤4dB | |
| Gain Adjustment Range | 1~31dB@Step 1dB | |
| Maximum Input Power(non-destructive) | 10dB | |
| I/O Impedance | 50Ω | |
| Noise Figur | ≤5dB | |
| System Delay | ≤5μSec | |
| VSWR | ≤2.0 | |
| Spurious Emission | 9kHz~1GHz: ≤ -36dBm/30kHz | |
| 9kHz~1GHz: ≤ -36dBm/30kHz | ||
| Third-order Inter-moduleation | ≤ -15dBm/30kHz | |
| RF Connector | N-Type(Female) | |
| Power Supply | AC220V | |
| Operating Temperature | -10℃~+50℃ | |
| Relative Humidity Range | ≤95%(non condensing) | |
| Dimensions | 428x328x175 mm | |
| Mounting | Wall mounting | |
| Weight | ≤15kg | |
| Aplication | Indoor or Outdoor(IP65) | |
| Remote Control Module(optional) | Wireless Modem(GSM) | |
| NMS Monitoring Function(Optional) | Real-time alarm for door status, temperature, power supply, VSWR, etc; Remote control such as turn on/off, increasing/decreasing output power etc; Real-time status for output/input power, UL/DL gain, all status of BDA etc. | |
