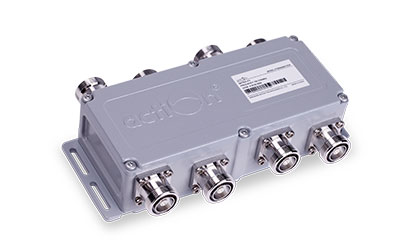

Este es un mismo combinador de banda, cuya frecuencia se puede personalizar para todos los operadores. Diseñado con 4 entradas y 4 salidas, Matrix 4x4 puede integrar eficientemente múltiples bandas cercanas y transmitir la banda general respectivamente a través de múltiples puertos. Para puertos no utilizados, pueden terminarse con cargas ficticias de bajo PIM. Todo el estuche está bajo IP66 a prueba de agua, que se puede aplicar tanto en interiores como en exteriores. Sería una buena opción para el sistema IBS / BTS.
Característica:
| Type | Hibrid Combiner 698~2700 MHz(4In - 4Out) | |||
|---|---|---|---|---|
| Port | Port 1 | Port 2 | Port 3 | Port 4 |
| Frequency Range | 698~3800MHz | 698~3800MHz | 698~3800MHz | 698~3800MHz |
| VSWR | ≤1.22 | |||
| Insertion Loss | ≤6.9dB | |||
| Isolation | ≥ 26 dB | |||
| Inter-modulation(3rd order) | ≤-160dBc @2 x 20W | |||
| Power Handing(W) | ≤300W | |||
| DC/AISG Transparency | DC path IN 1→OUT 4, IN 2→OUT 2 | |||
| DC path IN 3→OUT 3, IN 4→OUT 1 | ||||
| (max.6.5A AISG 2.0 confirm) | ||||
| Connector Type | 8Pcs 4.3-10 Female/DIN Female/N Female | |||
| Aplication | Indoor or Outdoor(IP67) | |||
| Operating Temperature(℃) | -20℃ to + 60℃ | |||
| Storage Temperature Range | -40°C to +85°C | |||
| Relative Humidity | 5% - 95% | |||
| Impedance | 50Ω | |||
| Dimensiton | 250×94×45(mm) | |||
| Weight | 2.0Kg | |||
| Packing | 1 Piece/box | |||
