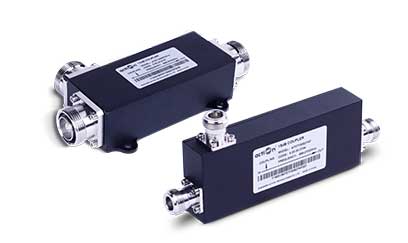

RF Hybrid Coupler is a Power divider and low insertion loss BTS/IBS passive component. It can be applied to indoor or outdoor signal distribution system, featured as dividing one input signal into two or multiple signal outputs with specified coupling level.
Coupler Specification:
| Model | AT0705066043F | AT0706066043F | AT0707066043F | AT0708066043F |
|---|---|---|---|---|
| Coupling Level | 5dB | 6dB | 7dB | 8dB |
| Frequency | 698~6000 MHz | |||
| Coupling Uniformity | ±0.8 | ±0.8 | ±0.8 | ±0.8 |
| Insertion Loss | ≤2.1 | ≤1.7 | ≤1.5 | ≤1.3 |
| V.S.W.R | ≤ 1.25dB | |||
| Isolation | ≥25 | ≥26 | ≥27 | ≥28 |
| Inter-modulation(3rd order) | < -160 dBc @ 2x43 dBm | |||
| Impedance | 50Ω | |||
| Power Handing | 300W(Avg.) | |||
| Operating Temperature Range | -40°C to +65°C | |||
| Storage Temperature Range | -40℃ to + 85℃ | |||
| Relative Humidity | 5~95 % | |||
| Aplications | Indoor or Outdoor(IP67) | |||
| Connectors | 4.3-10 Female / DIN Female / N Female | |||
| Weight | ≤0.8Kg | |||
| Dimentions | 180×71×38(mm) | |||
| Packing | 1 pcs/box | |||
| Model | AT0710066043F | AT0712066043F | AT0715066043F | AT0720066043F |
|---|---|---|---|---|
| Coupling Level | 10dB | 12dB | 15dB | 20dB |
| Frequency | 698~6000 MHz | |||
| Coupling Uniformity | ±1 | ±1 | ±1 | ±1 |
| Insertion Loss | ≤0.7 | ≤0.6 | ≤0.4 | ≤0.3 |
| V.S.W.R | ≤ 1.25dB | |||
| Isolation | ≥30 | ≥32 | ≥35 | ≥40 |
| Inter-modulation(3rd order) | < -160 dBc @ 2x43 dBm | |||
| Impedance | 50Ω | |||
| Power Handing | 300W(Avg.) | |||
| Operating Temperature Range | -25°C to +65°C | |||
| Storage Temperature Range | -40℃ to + 85℃ | |||
| Relative Humidity | 5~95 % | |||
| Aplications | Indoor or Outdoor(IP67) | |||
| Connectors | 4.3-10 Female / DIN Female / N Female | |||
| Weight | ≤0.8Kg | |||
| Dimentions | 180×71×38(mm) | |||
| Packing | 1 pcs/box | |||
| Model | AT0725066043F | AT0730066043F | AT0735066043F | AT0740066043F |
|---|---|---|---|---|
| Coupling Level | 25dB | 30dB | 35dB | 40dB |
| Frequency | 698~6000 MHz | |||
| Coupling Uniformity | ±1 | ±1 | ±1 | ±1 |
| Insertion Loss | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 |
| V.S.W.R | ≤ 1.25dB | |||
| Isolation | ≥45 | ≥50 | ≥55 | ≥60 |
| Inter-modulation(3rd order) | < -160 dBc @ 2x43 dBm | |||
| Impedance | 50Ω | |||
| Power Handing | 300W(Avg.) | |||
| Operating Temperature Range | -25°C to +65°C | |||
| Storage Temperature Range | -40℃ to + 85℃ | |||
| Relative Humidity | 5~95 % | |||
| Aplications | Indoor or Outdoor(IP67) | |||
| Connectors | 4.3-10 Female / DIN Female / N Female | |||
| Weight | ≤0.8Kg | |||
| Dimentions | 180×71×38(mm) | |||
| Packing | 1 pcs/box | |||
