Quadplexer Combiner

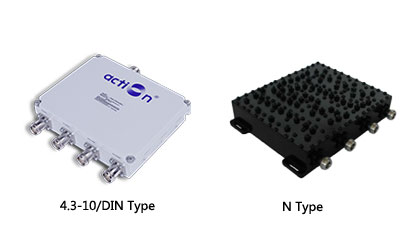

Action's Quadplexer Combiner


  • Model: AT0503010721DF
  • 4 ports In - 1 port Out
  • Connector Type: 4.3-10 Female/DIN Female/N Female


This is a different band combiner, whose frequency can be customized for all operators. Designed with 4 inputs and 1 outputs, the Quadplexer Combiner can efficiently integrate multiple different bands and transmit the overall band respectively through the same output ports. The whole case is under IP66 waterproof, which can be applied to both indoor and outdoor. It would be your good choice for IBS/BTS system.

Feature:

  • Technology available: 5G/4G/3G/2G/WiFi.
  • Frequency available: 790~960MHz, 1710~1880MHz, 1920~2170MHz, 2400~2690MHz
  • Connector type: 4.3-10/DIN/N.
  • High quality: low PIM to -163dBc, insertion loss below 0.3dB, and isolation from 50dB.

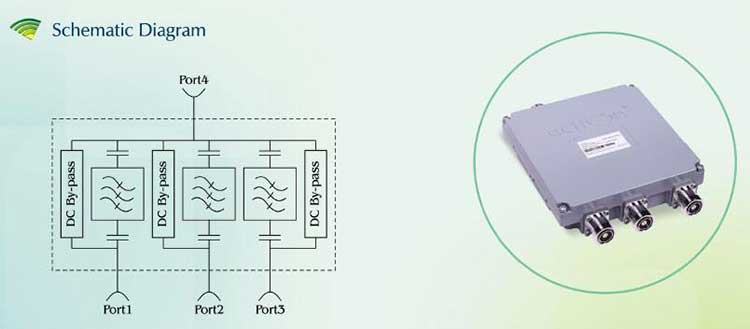

Schematic Diagram:

Quadplexer combiner Schematic Diagram
4.3-10/DIN Female Specification:
Type4 Ports In - 1 Port Out
PortPort 1Port 2Port 3Port 4
Operating Frequency Band698~960 MHz1710~1880 MHz1920~2170 MHz2300~2700 MHz
VSWR≤1.22
Insertion Loss≤0.35dB @698~960MHz
≤0.35dB @1710~1880MHz
≤0.35dB @1920~2170MHz
≤0.35dB @2300~2700MHz
Isolation Between Bands> 50.0 dB
PIM3≤-160dBc @2 x 20W
Power Handing(W)≤200W
Connector Type4.3-10 Female/DIN Female
AplicationIndoor or Outdoor(IP67)
Impedance50Ω
Operating Temperature(℃)-20℃ to + 65℃
Relative Humidity5% ~ 95%
DC/AISG TransparencyBy-Pass(Max. 3000mA)
Lighting Protection10kA, 10/350μs pulse
MountingWall or Mast Mount
Weight≤3Kg


N Female Specification:
Type4 Ports In - 1 Port Out
PortPort 1Port 2Port 3Port 4
Operating Frequency Band698~960 MHz1710~1880 MHz1920~2170 MHz2300~2700 MHz
VSWR≤1.22
Insertion Loss≤0.8dB @698~960MHz
≤0.8dB @1710~1880MHz
≤0.8dB @1920~2170MHz
≤0.8dB @2300~2700MHz
Isolation Between Bands> 80 dB
PIM3≤-155dBc @2 x 20W
Power Handing(W)≤200W
Connector TypeN Female
AplicationIndoor
Impedance50Ω
Operating Temperature(℃)-20℃ to + 65℃
Relative Humidity5% ~ 95%
Weight≤1.45Kg
Dimensions175x148x35.5(mm)
Packing1 PCS/Box
