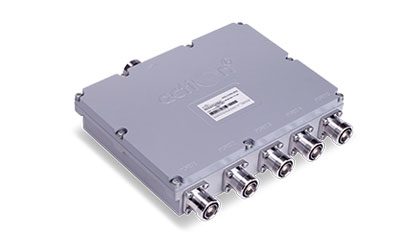

This is a different band combiner, whose frequency can be customized for all operators. Designed with 5 inputs and 1 outputs, the Pentaplexer Combiner can efficiently integrate multiple different bands and transmit the overall band respectively through the same output ports. The whole case is under IP66 waterproof, which can be applied to both indoor and outdoor. It would be your good choice for IBS/BTS system.
Feature:

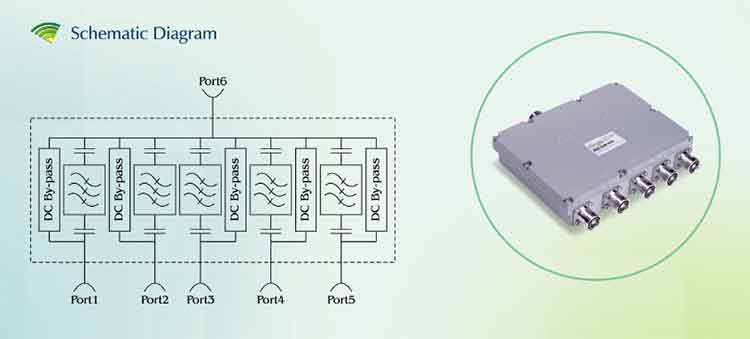

Schematic Diagram:
| Type | Single Unit(5 Ports In - 1 Port Out) | ||||
|---|---|---|---|---|---|
| Port | Port 1 | Port 2 | Port 3 | Port 4 | Port 5 |
| Operating Frequency Band | 1920~2170 MHz | 1710~1880 MHz | 2500~2700 MHz | 790~862 MHz | 880~960 MHz |
| VSWR | ≤1.22 | ||||
| Insertion Loss | ≤0.5dB | ||||
| Isolation Between Bands | ≥50dB | ||||
| PIM3 | ≤-160dBc @2 x 20W | ||||
| Power Handing(W) | ≤200W | ||||
| Connector Type | 4.3-10 Female/DIN Female | ||||
| Aplication | Indoor or Outdoor(IP67) | ||||
| Impedance | 50Ω | ||||
| Operating Temperature(℃) | -20℃ to + 65℃ | ||||
| Relative Humidity | 5% ~ 95% | ||||
| DC/AISG Transparency | By-Pass(Max. 3000mA) | ||||
| Lighting Protection | 10kA, 10/350μs pulse | ||||
| Mounting | Wall or Mast Mount | ||||
| Weight | ≤4Kg | ||||
