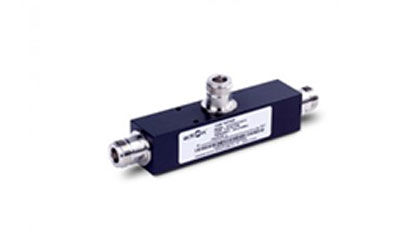

Tapper distributes less power of the RF/antenna signal owing to insertion loss and coupling value. Compared to splitter, tapper never spills the value but contrarily remains same input value to both outputs until it suffers insertion loss and coupling; whereas compared to coupler, isolation reduction is no need for a tapper.
Tapper Specification:
| Model | AT2203063843F | AT2205063843F | AT2206063843F | AT2208063843F |
|---|---|---|---|---|
| Coupling | 3dB | 4.8dB | 6dB | 8dB |
| Frequency (Customized) | 698~1400 MHz & 1700~3800 MHz | |||
| Coupling Valuing (dB) | 4.8±1.2 | 6.1±1.0 | 7±0.8 | 8.6±0.8 |
| Insertion Loss (dB) | ≤2.1 | ≤1.7 | ≤1.4 | ≤1.1 |
| VSWR | ≤1.3 | |||
| PIM3 | ≤-160dBc @2×43dBm | |||
| Impedance | 50Ω | |||
| Power Handing | 300W(Avg.) | |||
| Operating Temperature Range | -40℃ to + 65℃ | |||
| Relative Humidity | 5%~95% | |||
| Aplications | Indoor or Outdoor(IP67) | |||
| Connector Type (Customized) | 4.3-10 Female / DIN Female / N Female | |||
| Weight | ≤0.5Kg | |||
| Dimentions | 105×25×25(mm) | |||
| Packing | 1 pcs/box | |||
| Model | AT2209063843F | AT2210063843F | AT2213063843F | AT2215063843F |
|---|---|---|---|---|
| Coupling | 9dB | 10dB | 13dB | 15dB |
| Frequency (Customized) | 698~1400 MHz & 1700~3800 MHz | |||
| Coupling Valuing (dB) | 9.5±0.8 | 10.4±0.8 | 13.2±0.8 | 15.1±0.8 |
| Insertion Loss (dB) | ≤0.9 | ≤0.7 | ≤0.5 | ≤0.3 |
| VSWR | ≤1.3 | |||
| PIM3 | ≤-160dBc @2×43dBm | |||
| Impedance | 50Ω | |||
| Power Handing | 300W(Avg.) | |||
| Operating Temperature Range | -40℃ to + 65℃ | |||
| Relative Humidity | 5%~95% | |||
| Aplications | Indoor or Outdoor(IP67) | |||
| Connector Type (Customized) | 4.3-10 Female / DIN Female / N Female | |||
| Weight | ≤0.5Kg | |||
| Dimentions | 105×25×25(mm) | |||
| Packing | 1 pcs/box | |||
| Model | AT2220063843F | AT2230063843F |
|---|---|---|
| Coupling | 20dB | 30dB |
| Frequency (Customized) | 698~1400 MHz & 1700~3800 MHz | |
| Coupling Valuing (dB) | 20.1±0.8 | 30.1±2 |
| Insertion Loss (dB) | ≤0.3 | ≤0.3 |
| VSWR | ≤1.3 | |
| PIM3 | ≤-160dBc @2×43dBm | |
| Impedance | 50Ω | |
| Power Handing | 300W(Avg.) | |
| Operating Temperature Range | -40℃ to + 65℃ | |
| Relative Humidity | 5%~95% | |
| Aplications | Indoor or Outdoor(IP67) | |
| Connector Type (Customized) | 4.3-10 Female / DIN Female / N Female | |
| Weight | ≤0.5Kg | |
| Dimentions | 105×25×25(mm) | |
| Packing | 1 pcs/box | |
