RF Power Splitter or Power Divider is an equal power-distribution device and low insertion loss BTS/IBS passive component. It can be applied to indoor or outdoor signal distribution system, featured as dividing one input signal into two or multiple signal outputs with the same amplitude.

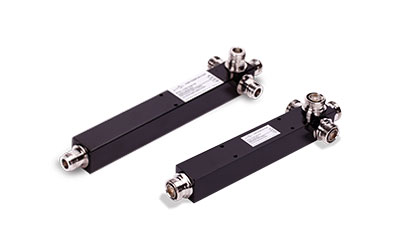

2-way / 3-way / 4-way N types Power Splitter:
2-way / 3-way / 4-way DIN types Power Splitter:
| Type | 2-Way | 3-Way | 4-Way |
|---|---|---|---|
| Model | AT060102066043F/DF/NF | AT060103066043F/DF/NF | AT060104066043F/DF/NF |
| Frequency Range | 698~6000 MHz | ||
| Insertion Loss | ≤0.2dB | ≤0.3dB | ≤0.4dB |
| Split Loss | ≤ 3.0dB | ≤ 4.8dB | ≤ 6.0dB |
| Ripple | ≤ 0.3dB | ≤ 0.4dB | ≤ 0.5dB |
| V.S.W.R | ≤1.25 | ≤1.25 | ≤ 1.30dB |
| Impedance | 50Ω | ||
| Power Handling | ≤300W | ||
| PIM3 | ≤-160dBc @2×43dBm | ||
| Connector Type (Customized) | 4.3-10 Female / DIN Female / N Female | ||
| Operating Temperature Range | -30°C ~ +75°C | ||
| Storage Temperature Range | -40°C ~ +85°C | ||
| Relative Humidity | 5% ~ 95%td> | ||
| Aplication | Indoor or Outdoor(IP67) | ||
| Dimentions | 208.5×38×38(mm) | 209×38×38(mm) | 212×38×38(mm) |
| Weight | 0.9 Kg | 1.0 Kg | 1.1 Kg |
