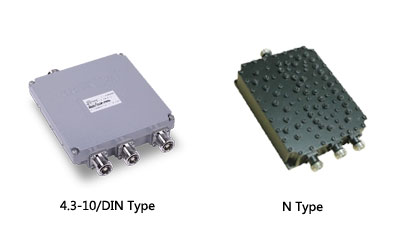

This is a different band combiner, whose frequency can be customized for all operators. Designed with 3 inputs and 1 outputs, the Triplexer Combiner can efficiently integrate multiple different bands and transmit the overall band respectively through the same output ports. The whole case is under IP66 waterproof, which can be applied to both indoor and outdoor. It would be your good choice for IBS/BTS system.
Feature:

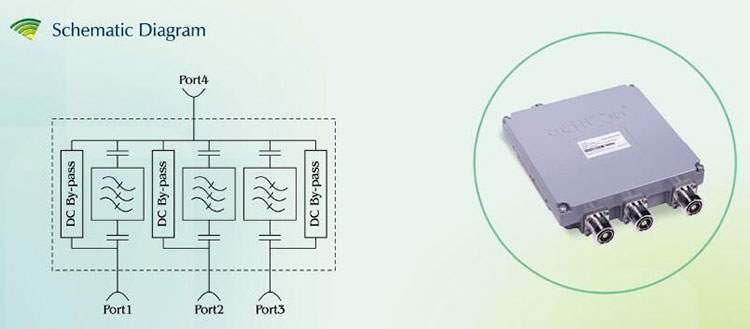

Schematic Diagram:
| N Female Specification: | |||
|---|---|---|---|
| Type | 3Ports In - 1Port Out | ||
| Port | Port 1 | Port 2 | Port 3 |
| Operating Frequency Band | 698~960MHz | 1710~2170MHz | 2400~2700MHz |
| Insertion Loss | < 0.5dB | ||
| In-Band Ripple | ≤0.3dB | ||
| VSWR | < 1.25dB | ||
| Rejection | ≥50dB | ||
| PIM3 | ≤-155dBc @2 x 20W | ||
| Power Handling | ≤200W | ||
| Connector Type | N Female | ||
| Aplication | Indoor | ||
| Impedance | 50Ω | ||
| Operating Temperature(℃) | -20℃ to + 65℃ | ||
| DC/AISG Transparency | By-Pass(Max. 3000mA) | By-Pass(Max. 3000mA) | By-Pass(Max. 3000mA) |
| Relative Humidity | 5% ~ 95% | ||
| Dimensions | 148x120x35.5(mm) | ||
| Weight | ≤0.9Kg | ||
| Packing | 1 PCS/Box | ||
| 4.3-10/DIN Female Specification: | |||
|---|---|---|---|
| Type | 3Ports In - 1Port Out | ||
| Port | Port 1 | Port 2 | Port 3 |
| Operating Frequency Band | 790~960 MHz | 1710~1880 MHz | 1920~2170 MHz |
| Insertion Loss | < 0.30dB | ||
| VSWR | < 1.22dB | ||
| Isolation Between Bands | ≥60dB @698~960MHz | ||
| ≥60dB @1710~1880MHz | |||
| ≥60dB @1920~2170MHz | |||
| PIM3 | ≤-160dBc @2 x 20W | ||
| Power Handling | ≤200W | ||
| Connector Type | 4.3-10 Female/DIN Female | ||
| Aplication | Indoor or Outdoor(IP67) | ||
| Impedance | 50Ω | ||
| Operating Temperature(℃) | -20℃ to + 60℃ | ||
| DC/AISG Transparency | By-Pass(Max. 3000mA) | By-Pass(Max. 3000mA) | By-Pass(Max. 3000mA) |
| Relative Humidity | 5% ~ 95% | ||
| Lighting Protection | 10kA, 10/350μs pulse | ||
| Mounting | Wall or Mast Mount | ||
| Weight | ≤3.6Kg | ||
