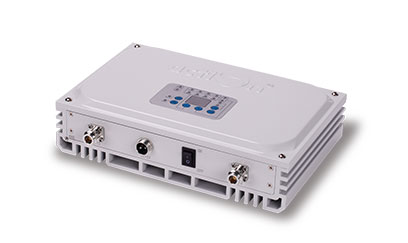

The TETRA Band Selective Pico BDA is designed to provide a more cost-effective solution than adding a new Base Transceiver Station (BTS) to improve signal coverage and communication quality in TETRA Pico BDA system.
Feature:
Aplications:
To expand signal coverage or fill signal blind area where radio network signal is weak or unavailable.
| Items | TETRA PICO BDA | |
|---|---|---|
| Frequency Range | Uplink (Customized) | 380~385 MHz / 415~420 MHz / 806~821 MHz |
| Downlink (Customized) | 390~395 MHz / 425~430 MHz / 851~866 MHz | |
| Bandwidth (To Specify Before Production) | From 1 to 15MHz,Filter SAW Adjusted | |
| Maximum Gain | 65±3dB | |
| Maximum Output Power(Customized) | 20±2dBm | |
| AGC&MGC Range | ≥20dB | |
| Maximum Input Power(Non-Destructive) | ≤0dBm | |
| I/O Impedance | 50 Ω | |
| Noise Figure | ≤ 6dB | |
| System Delay | ≤ 5μs | |
| VSWR | ≤ 2.0 | |
| RF Connector | N-Type (Female) | |
| Spurious Emission | 9kHz~1GHz: ≤ -36dBm/30kHz | |
| 1GHz~12.75GHz:≤-30dBm/30kHz | ||
| Power Consumption | ≤ 25W | |
| Power Supply | Input:AC100~ 240V;Output:9V/5A | |
| Dimensions | 188mm×265mm×68mm | |
| Weight | ≤5 kg | |
| Alarm Monitoring System | Alarm for Uplink Self-Oscillation | |
| Isolation Detection | Isolation Check During Boot Time | |
| LED Indicator | Power Supply, Smart, State | |
| Operating Temperature | -10 ~ +50 °C | |
| Application | Indoor(IP30) | |
| Relative Humidity Range | ≤ 95%(Non Condensing) | |
