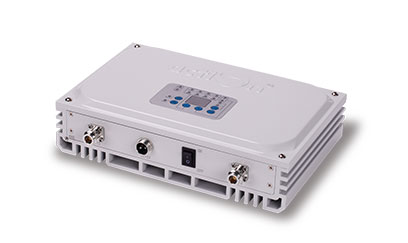

The iDEN Band Selective Pico BDA is designed to provide a more cost-effective solution than adding a new Base Transceiver Station (BTS) to improve signal coverage and communication quality in iDEN Pico BDA system.


Feature:

  • Two signal ports with full duplex design.
  • Supporting TETRA/DMR/P25/iDEN system.
  • Linear power amplification to effectively suppress inter-modulation and spurious emission.
  • Smart Automatic Level Control (ALC) to ensure stable and continuously adjustable output level.
  • Auto Isolation check between service and donor antennas.
  • Smart Mode to auto-adjust gain according to the isolation and signal level received by donor site.
  • Simple installation with external AC/DC adapter.

Aplications:

To expand signal coverage or fill signal blind area where radio network signal is weak or unavailable.

  • Public Safety
  • Transportation
  • Utilities
  • Government
  • Military
  • PAMR
  • Commercial & Industry
  • Oil & Gas
ItemsiDEN PICO BDA
Frequency RangeUplink (Customized)380~385 MHz / 415~420 MHz / 806~821 MHz
Downlink (Customized)390~395 MHz / 425~430 MHz / 851~866 MHz
Bandwidth (To Specify Before Production)From 1 to 15MHz,Filter SAW Adjusted
Maximum Gain65±3dB
Maximum Output Power(Customized)20±2dBm
AGC&MGC Range≥20dB
Maximum Input Power(Non-Destructive)≤0dBm
I/O Impedance50 Ω
Noise Figure≤ 6dB
System Delay≤ 5μs
VSWR≤ 2.0
RF ConnectorN-Type (Female)
Spurious Emission9kHz~1GHz: ≤ -36dBm/30kHz
1GHz~12.75GHz:≤-30dBm/30kHz
Power Consumption≤ 25W
Power SupplyInput:AC100~ 240V;Output:9V/5A
Dimensions188mm×265mm×68mm
Weight≤5 kg
Alarm Monitoring SystemAlarm for Uplink Self-Oscillation
Isolation DetectionIsolation Check During Boot Time
LED IndicatorPower Supply, Smart, State
Operating Temperature-10 ~ +50 °C
ApplicationIndoor(IP30)
Relative Humidity Range≤ 95%(Non Condensing)
